SECTION 11



Gallery of EME QSO with Low ERP Stations
(Updated on August 18th, 2015)

This section is meant to demonstrate that Moonbounce / Earth-Moon-Earth communications are possible between relatively small stations (low ERP). The Newbee will quickly realize that a low ERP EME QSO is a totally different ball game, where the traces are often barely visible on the waterfall, and the ability to recognize them is absolutely critical. That is where the experience of the Moonbouncer comes into play. As an extreme example of the challenge described, I invite the reader to look at the EME QSO with Matt, K6EME. One can see that his traces were perfectly overlapped with an unstable birdy for almost the entire duration of the QSO!

This section will be updated as new videos become available...

******WARNING: For Acceptable Resolution, it is absolutely critical to follow the steps below:******
1) Start the video.
2) Enable the Full Screen View.
3) At the bottom right of the screen (dented little wheel), click on "settings" and select "720p HD".
4) Wait a couple of seconds, and "Restart" the video from the beginning (will enable full resolution to kick in).
5) Enjoy...!


Callsign: ON4KHG
Antenna: 1X12H
Power: 465 watts
Ground Gain: Yes
KK6FAH: 2X14RP/KW
Callsign: DL8SCQ
Antenna: 2X8H
Power: 750 watts
Ground Gain: Yes
KK6FAH: 2X11RP/KW
Callsign: G4HSK
Antenna: 2X8H
Power: 400 watts
Ground Gain: Yes
KK6FAH: 2X14RP/KW
Callsign: K6EME
Antenna: 1X18H
Power: 800 watts
Ground Gain: No
KK6FAH: 2X14RP/KW
Callsign: W8BYA
Antenna: 1X17H
Power: 450 watts
Ground Gain: Yes
KK6FAH: 2X14RP/KW
Callsign: ZL2MQ
Antenna: 2X9XP
Power: 1K, Circular
Ground Gain: No
KK6FAH: 2X14RP/KW
Callsign: N0LWF
Antenna: 2X9V
Power: 850 watts
Ground Gain: No
KK6FAH: 2X14RP/KW
Callsign: DL1VPL
Antenna: 1X12H
Power: 750 watts
Ground Gain: May be
KK6FAH: 2X11RP/KW
Callsign: FW5JJ
Antenna: 2X12H
Power: 1K
Ground Gain: Yes
KK6FAH: 2X14RP/KW
Callsign: ND0B
Antenna: 1X12H
Power: 1.5K
Ground Gain: Yes
KK6FAH: 2X14RP/KW
Callsign: DJ2TX
Antenna: 1X19H
Power: 800 watts
Ground Gain: Yes
KK6FAH: 2X14RP/KW
Callsign: DK3XT
Antenna: 1X11H
Power: 750 watts
Ground Gain: Yes
KK6FAH: 2X14RP/KW
Callsign: K3IB
Antenna: 1X12H
Power: 1300 watts
Ground Gain: Yes
KK6FAH: 2X14RP/KW
Callsign: ZL3NW
Antenna: 1X12H
Power: 500 watts
Ground Gain: Yes
KK6FAH: 2X14RP/KW
Callsign: DJ3VI
Antenna: 5 wl
Power: 1200 watts
Ground Gain: Yes
KK6FAH: 2X14RP/KW
Callsign: PA5Y
Antenna: 1X8H
Power: 800 watts
Ground Gain: Yes
KK6FAH: 2X14RP/KW

***WARNING: For Best Resolution, it is critical to select 720p HD resolution in the youtube "settings" at bottom right of the player. The 360p default setting won't yield good enough resolution to see the details. It will take several seconds before the High Resolution kicks in, so you will need to restart the video from the beginning when the High Resolution is active and select to view the video in "Full Screen Mode" for best experience...***



A couple of videos below with screenshot of my EME signal:

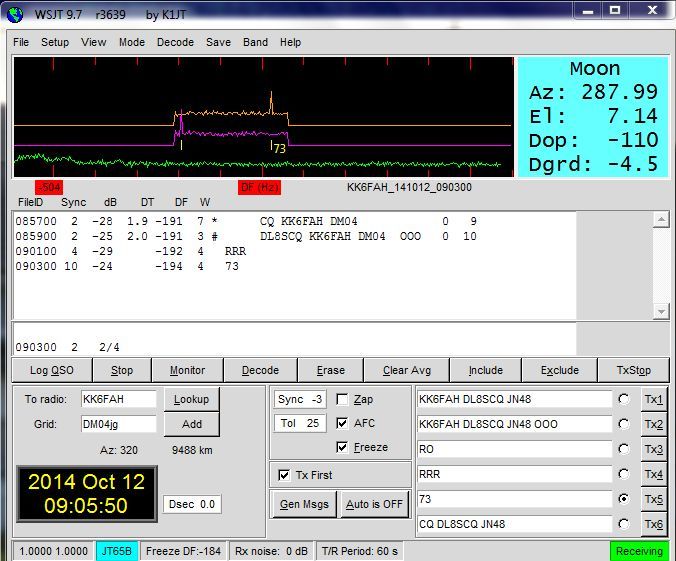

DL8SCQ: 2X8H, 750 watts
KK6FAH: 2X11RPOL, 1KW
See DL8SCQ Screenshot to the right

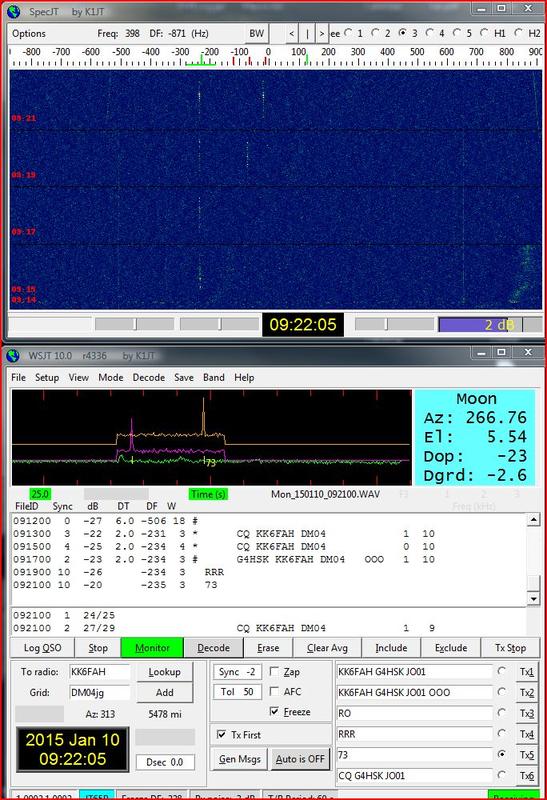

G4HSK: 2X8H, 400 watts
KK6FAH: 2X14RPOL, 1KW
See G4HSK Screenshot to the right
